Product detail

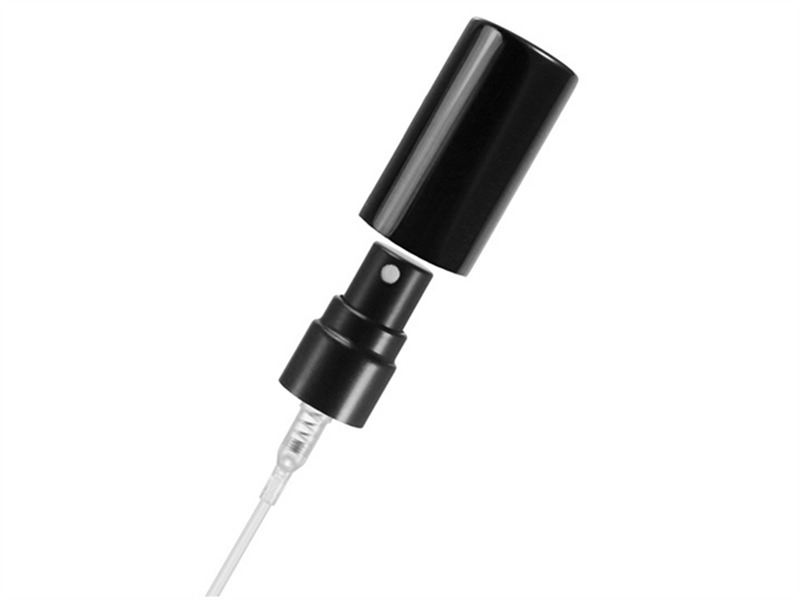

Perfume spray aluminum pump head
Perfume pumps are an important part of perfume glass bottles, mainly used to spray perfume evenly. The spray pump for perfume bottles usually consists of several components, including nozzles, pumps, pipes, and spray mechanisms. We have perfume spray pumps in various styles and sizes, such as 13mm, 15mm, 18mm, 20mm, and 24mm.
Perfume Spray Pump Structure
The nozzle is the part that makes the perfume spray out, usually made of metal or plastic. The pump is the part that drives the perfume into the nozzle, generally using a press design. The pipe is responsible for transporting the perfume from the bottle to the nozzle. The spray mechanism determines the uniformity and range of the spray. we can also customize the color of the perfume pumps.
These standard sizes accommodate various bottle neck sizes and provide different dispensing capacities based on the design of the pump mechanism and stroke length. The choice of perfume pump nozzles is crucial to the experience of using perfume. They produce a uniform and delicate spray that affects the perfume's intensity, range, and shelf life.
Perfume Pumps Sizes
When choosing the right perfume pump size for your fragrance product, it is important to consider the material to ensure optimal functionality and aesthetics. We offer plastic and aluminum perfume pumps for perfume bottles. Below are our common perfume pump sizes.
| Plastic Perfume Pumps | Size | Pump Upper(mm) | Pump Lower(mm) | Pump Height(mm) | Cap Upper(mm) | Cap Height(mm) |
| 10/400 | 9.3 | 11.2 | 27.5 | _ | _ | |
| 11/410 | 10.1 | 12.6 | 27.8 | 14 | 32 | |
| 12/410 | 10 | 14 | 25 | 13 | 18 | |
| 13/410 | 10 | 15 | 28 | 13 | 18 | |
| 14/410 | 11.5 | 16.4 | 30 | 15 | 22 | |
| 15/410 | 11.5 | 17.2 | 30 | 15 | 22 | |
| 16/410 | 15.1 | 18 | 35.6 | _ | _ | |
| 18/410 | 17.2 | 20.3 | 39 | _ | _ | |
| 18/415 | 14 | 21 | 38 | 17.3 | 23 | |
| 20/410 | 15.3 | 23 | 39 | 20 | 24.5 | |
| 20/415 | 17.4 | 23.3 | 42 | _ | _ | |
| 24/410 | 15 | 27 | 42 | _ | _ | |
| 28/410 | 15 | 31 | 43 | 20 | 29 |
| Aluminum Perfume Pumps | Screw mouth | Size | Pump Upper(mm) | Pump Lower(mm) | Pump Height(mm) | Cap Upper(mm) | Cap Height(mm) |
| 12/410 | 10 | 14.3 | 25 | 17 | 32 | ||
| 13/410 | 10 | 15 | 27 | 17 | 32 | ||
| 14/410 | 13 | 17.2 | 23 | _ | _ | ||
| 15/410 | 13/12 | 17.2/18 | 25/32 | 20 | 35 | ||
| 16/410 | 13 | 19 | 34 | 16.5 | 21 | ||
| 18/415 | 14.5 | 21 | 38 | 23.5 | 46.2 | ||
| 20/410 | 14.5 | 23.5 | 37 | 27.5 | 48 | ||
| 24/410 | 14.5 | 32 | 47 | 29 | 46 | ||
| 28/410 | 19.5 | 32.3 | 49.2 | _ | _ | ||
| Roll screw mouth | 13/410 | 10 | 13.5 | 24 | 14.4 | 31 | |
| 18/410 | 15.6 | 21 | 35.4 | 16.4 | 24 | ||
| 20/410 | 14.4 | 21 | 37.7 | 23 | 42.2 | ||
| 24/410 | 14.4 | 25 | 36 | 28 | 43 | ||
| Bayonet | 12/400 | 10 | 13 | 10.3 | 15 | 32 | |
| 13/400 | 13 | 14.3 | 10 | 17 | 32 | ||
| 15/400 | 13 | 16.3 | 9 | 18.6 | 34 | ||
| 17/400 | 13 | 18.3 | 10 | _ | _ | ||
| 18/400 | 13 | 19.3 | 10 | 23 | 33 | ||
| 20/400 | 13 | 20.8 | 10 | 24 | 47 |
Factory strength
Our glass bottle products come in a variety of shapes, types, colors and sizes, and can be professionally customized according to customer preferences and requirements to meet different uses in different occasions.
